Bucci F20 SM EV Conversion

Overview

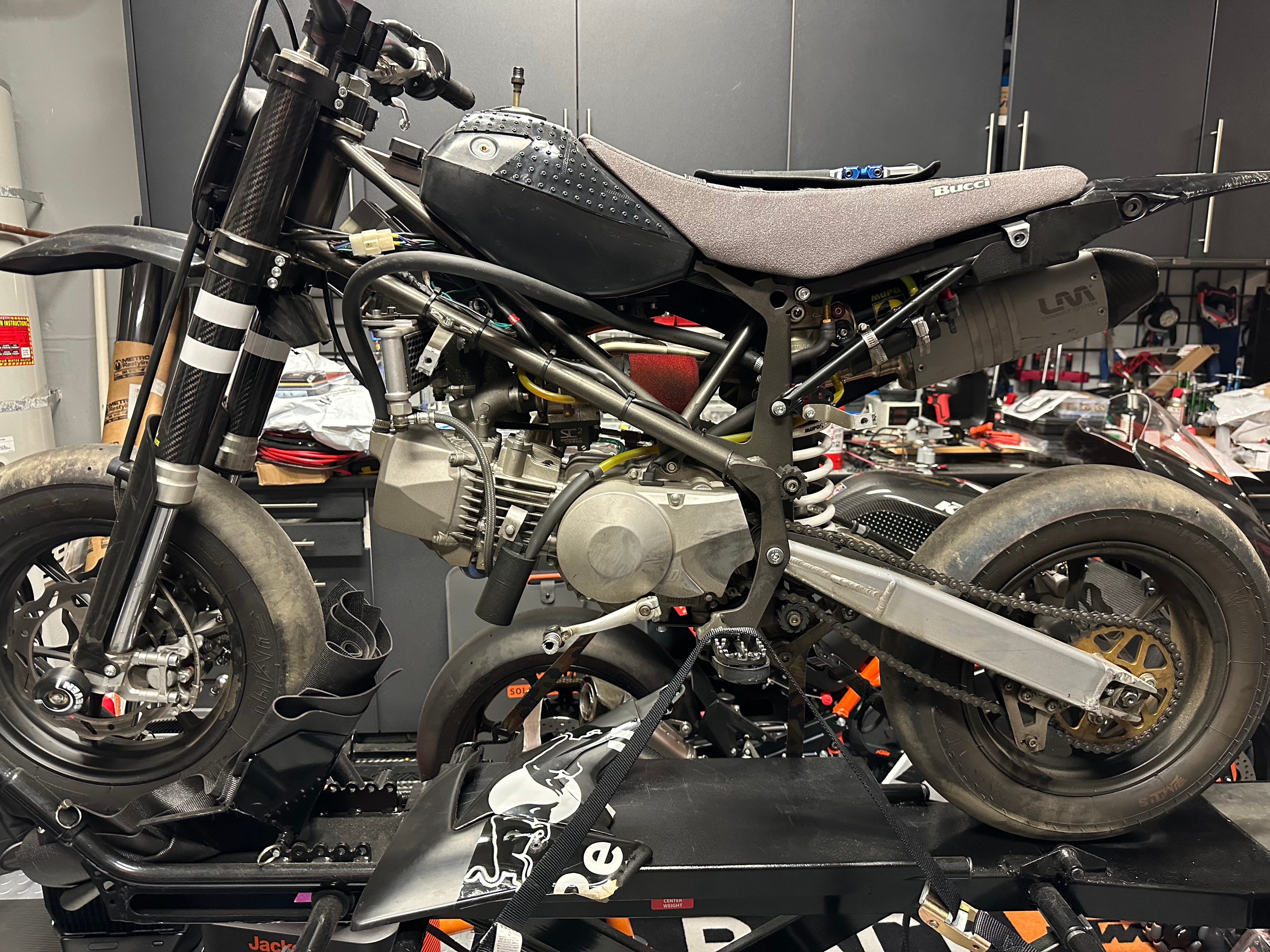

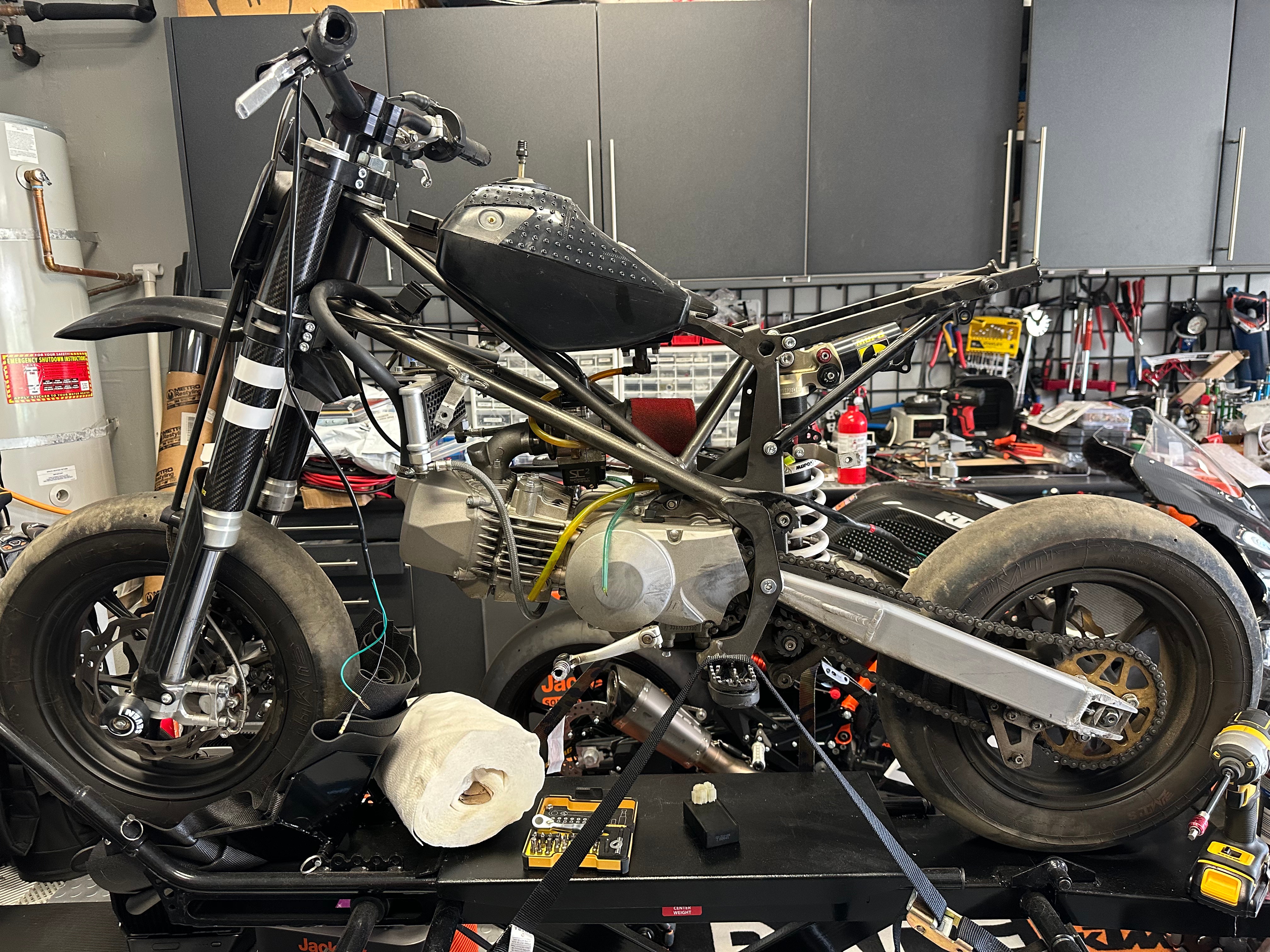

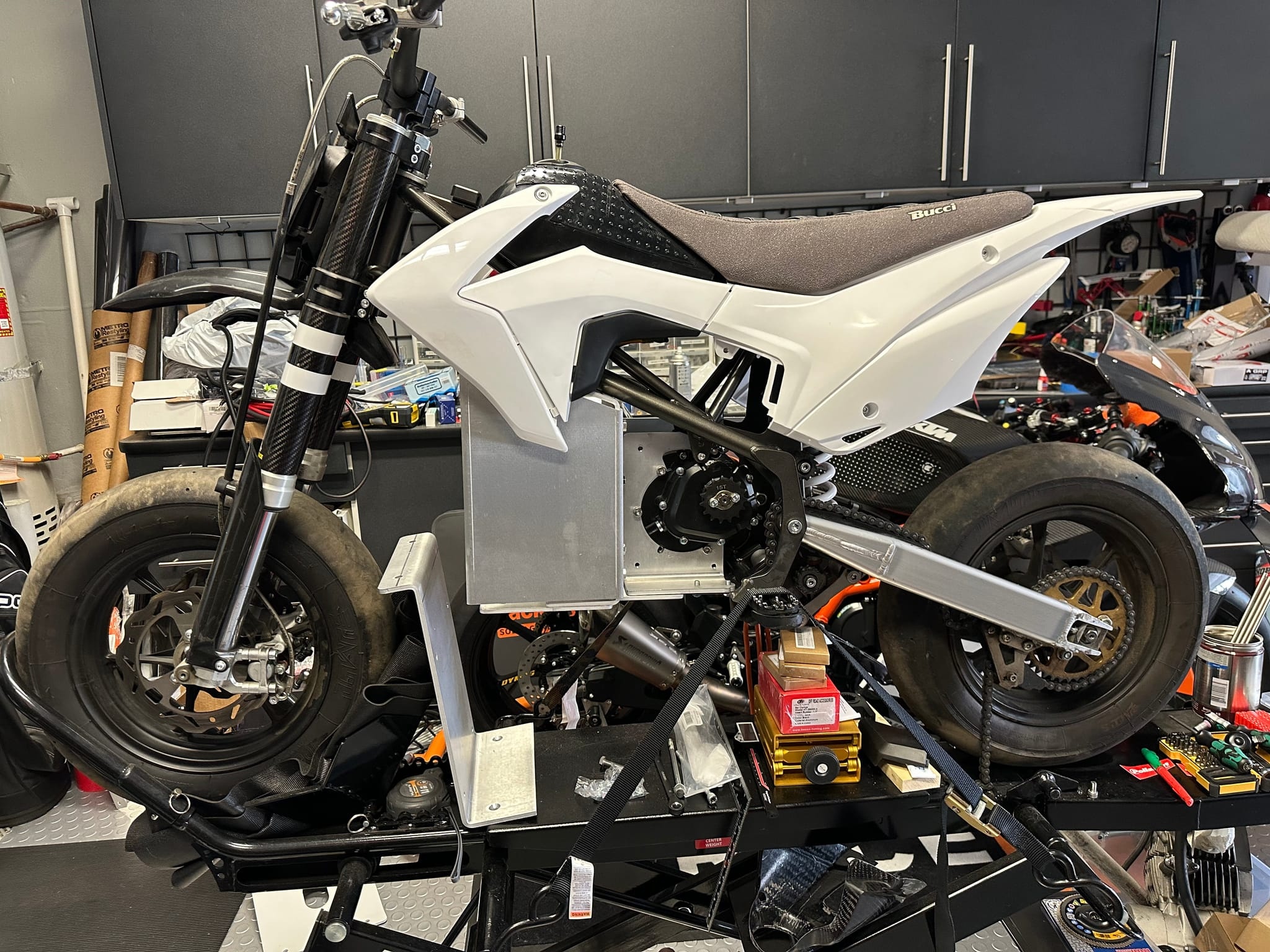

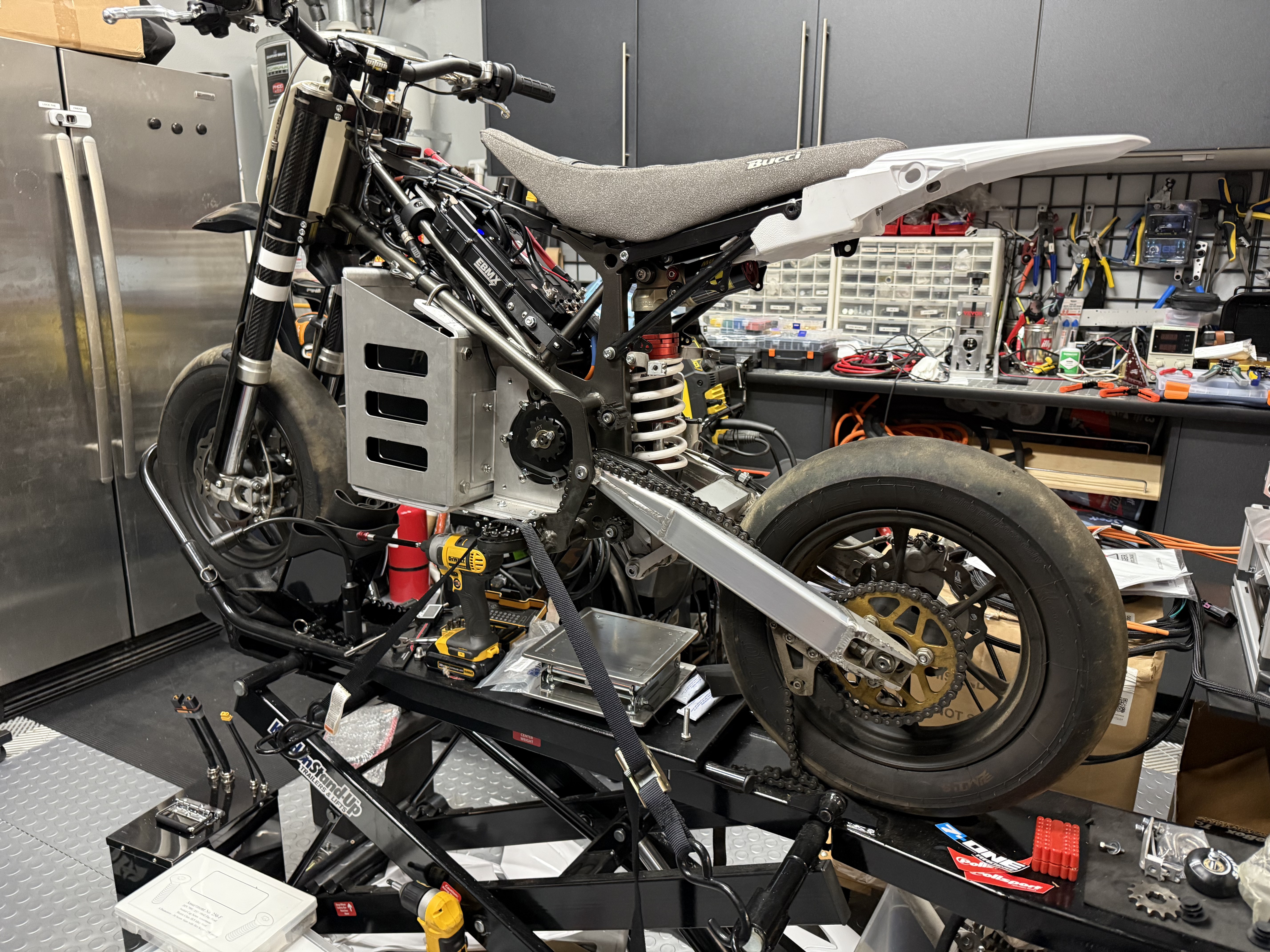

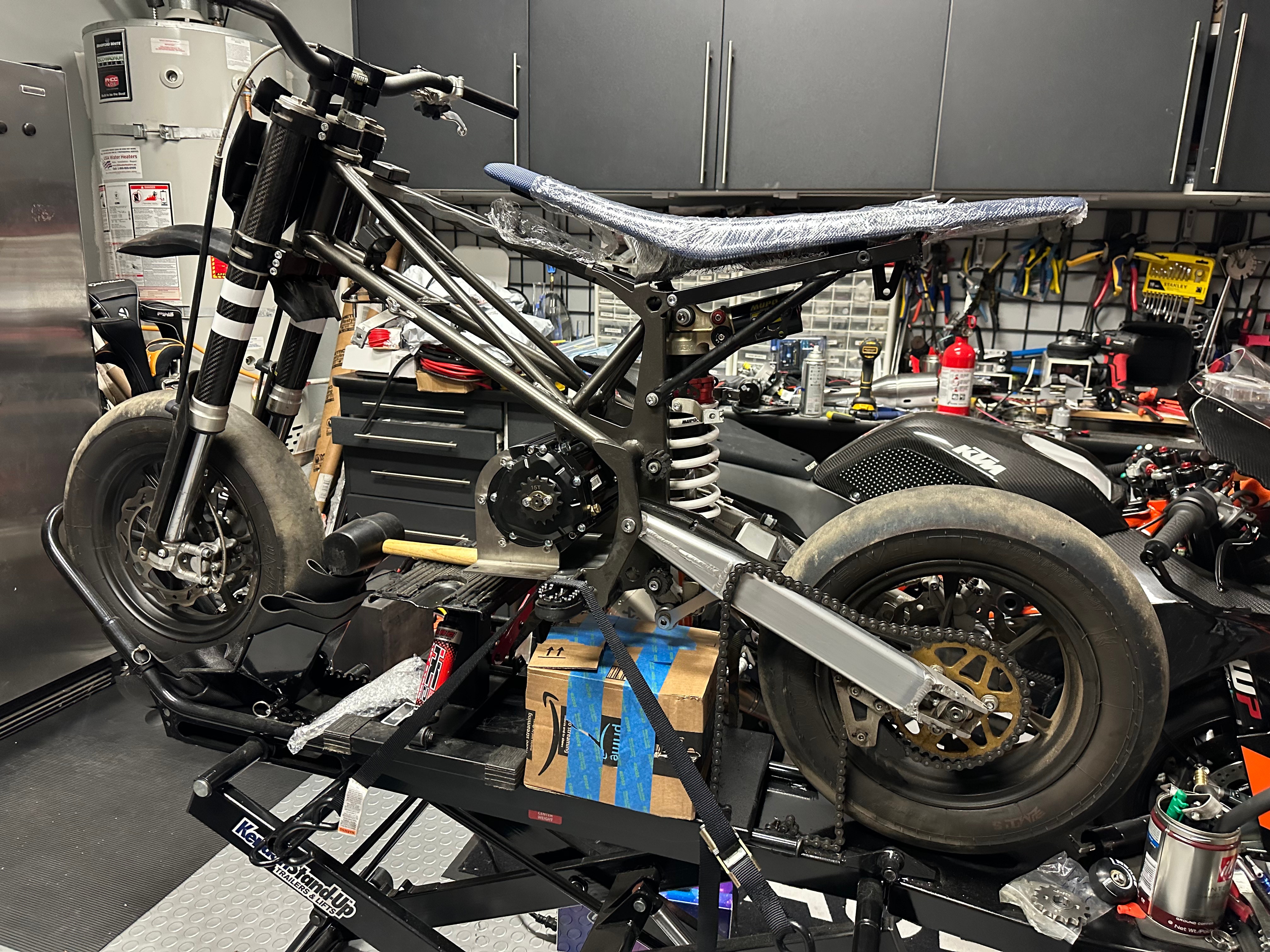

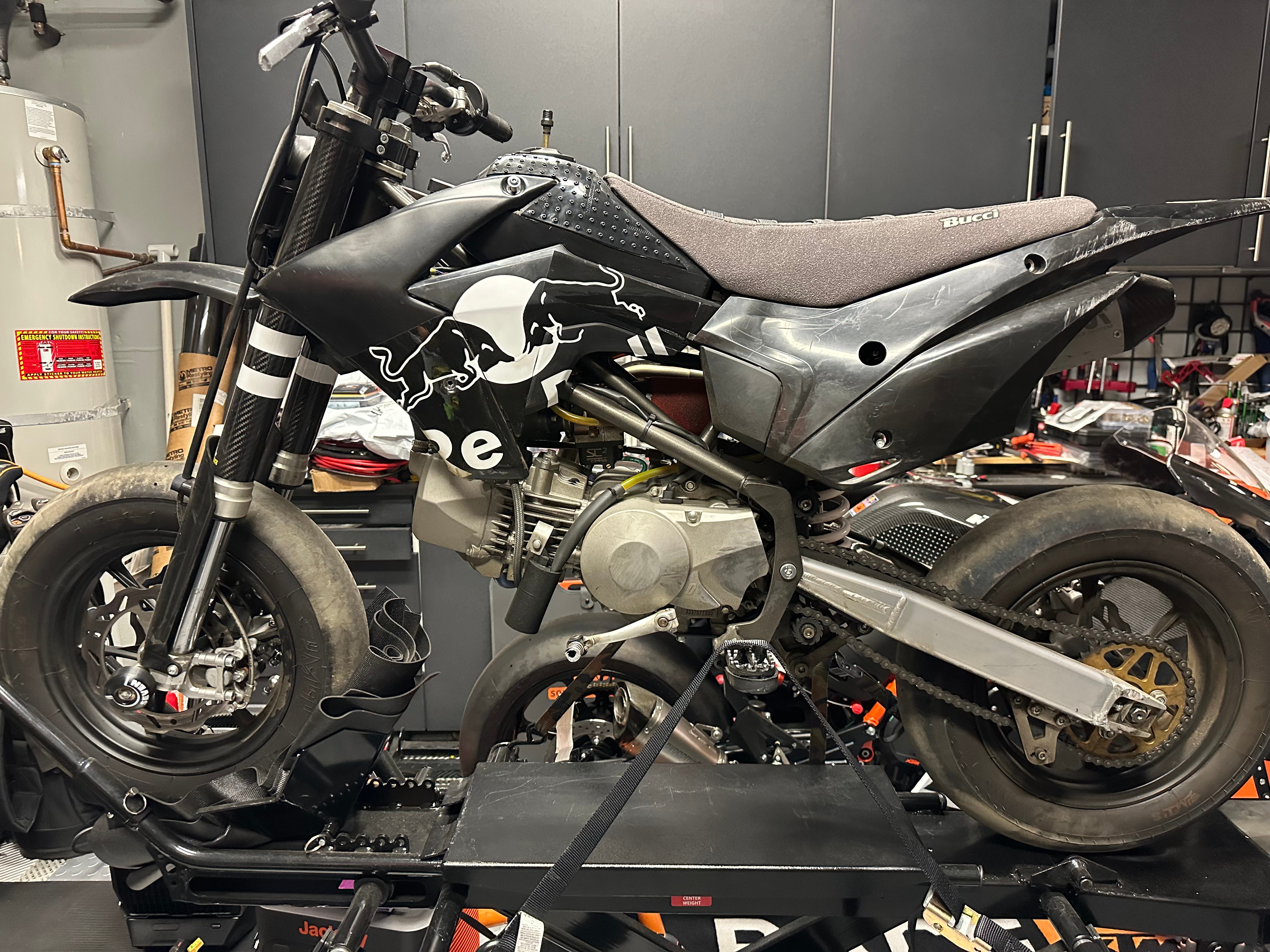

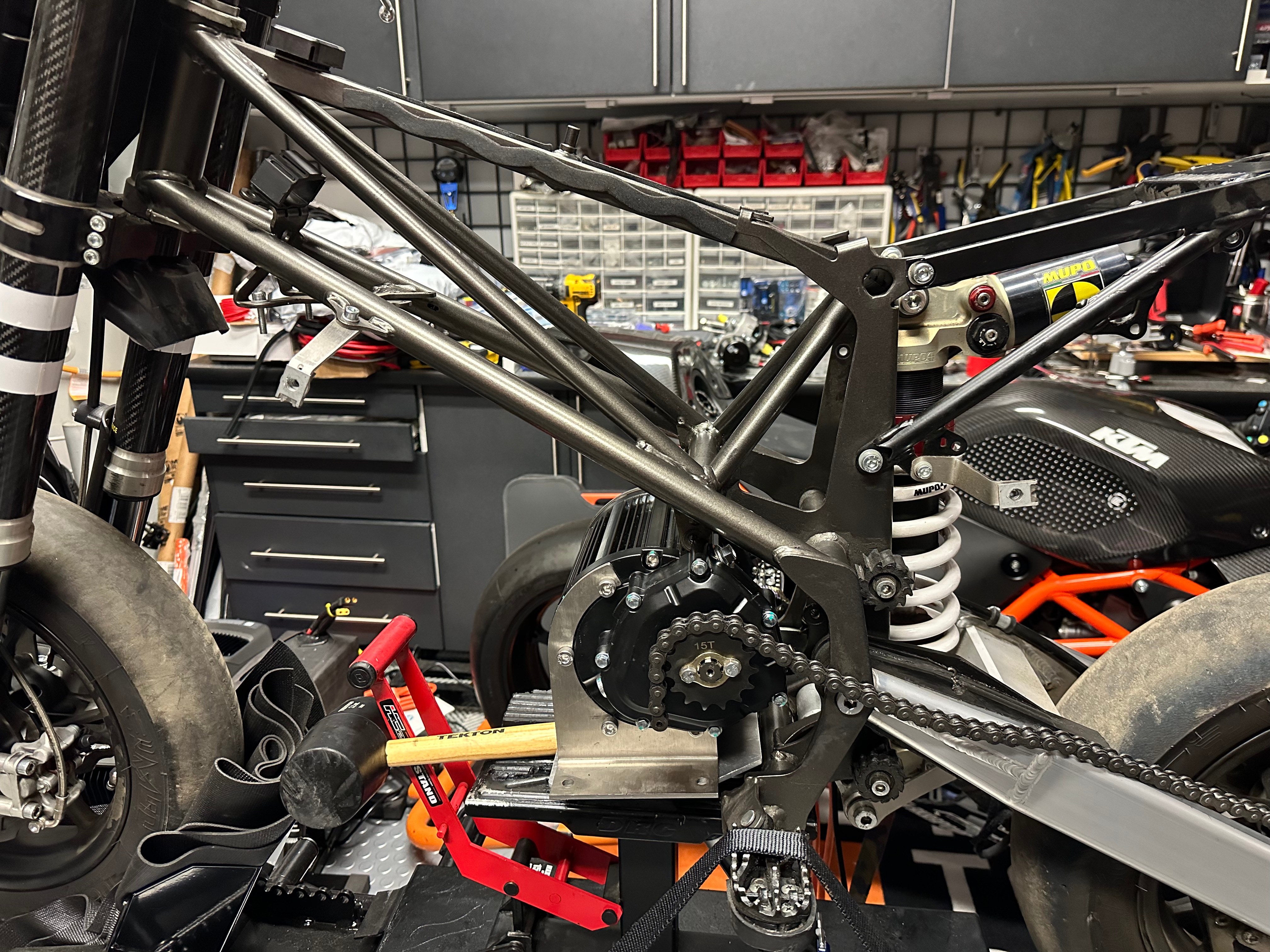

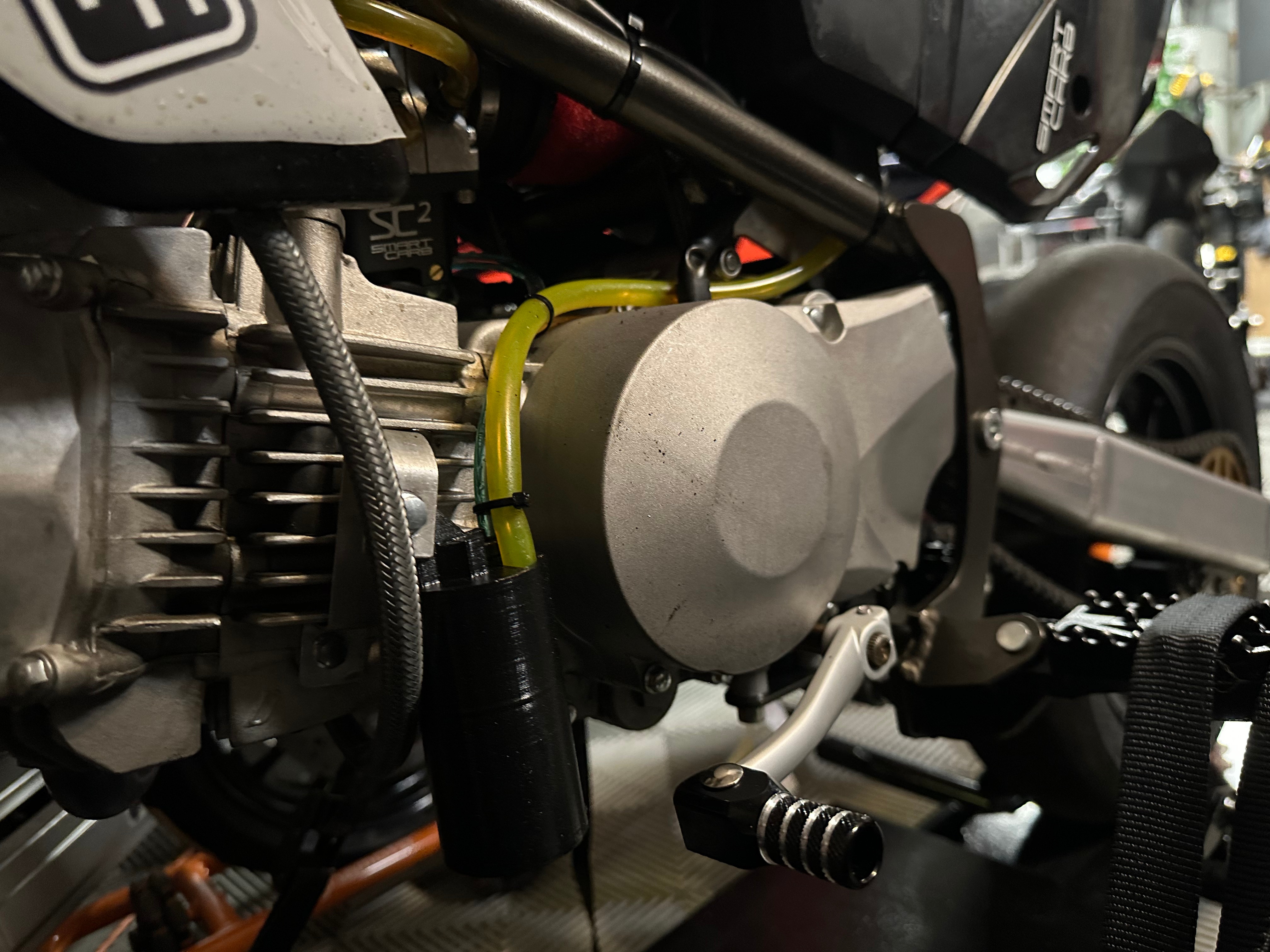

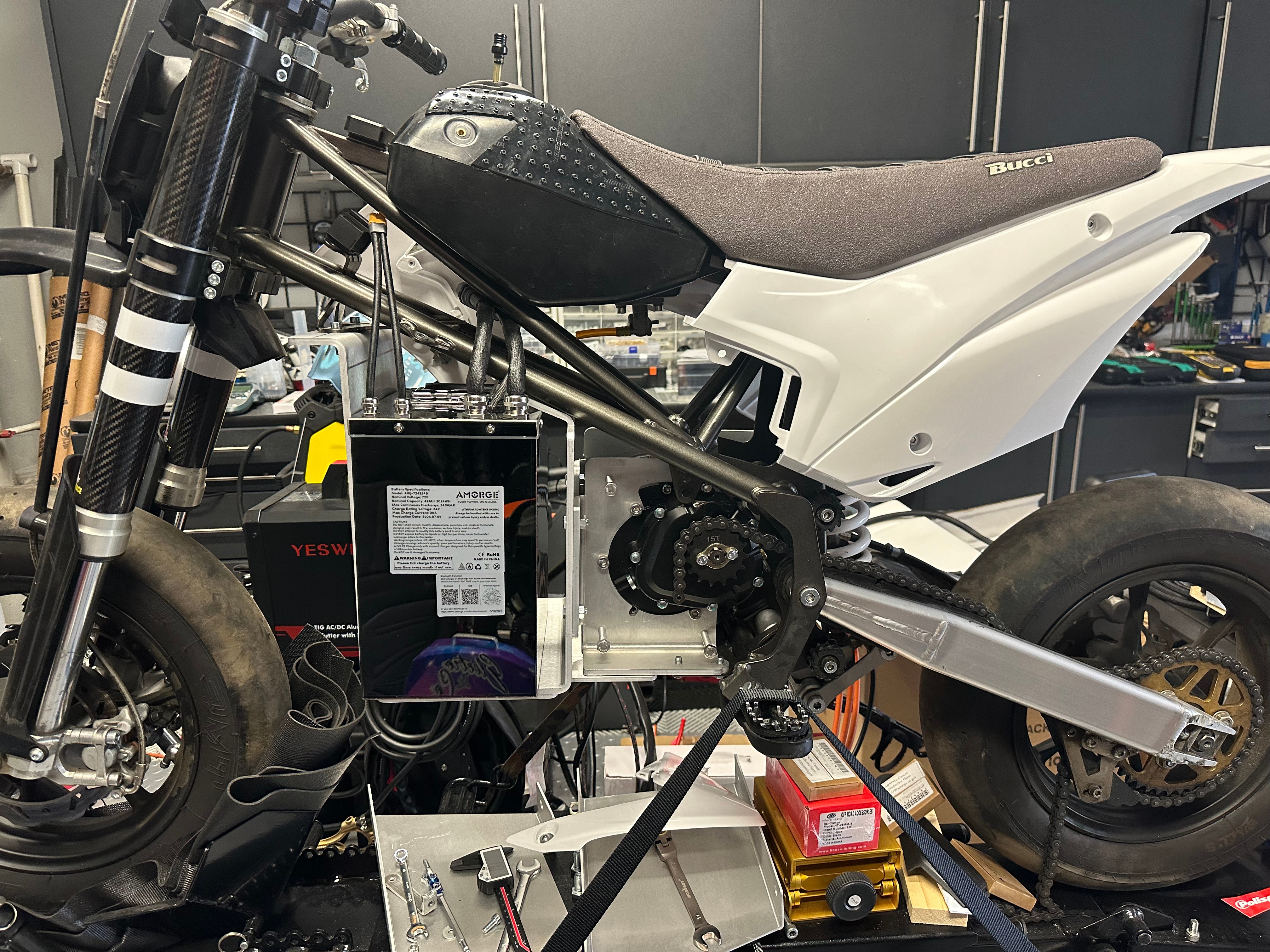

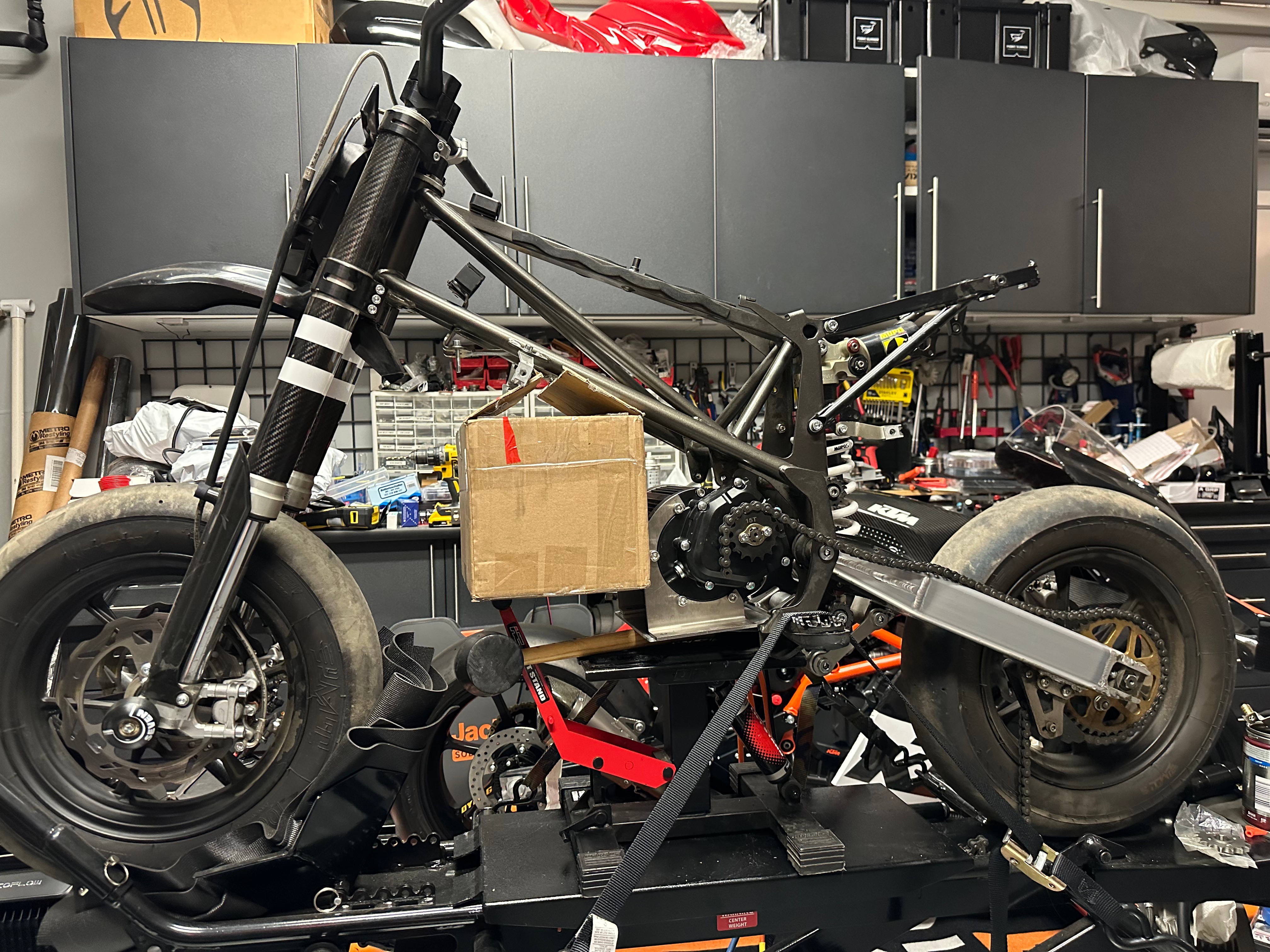

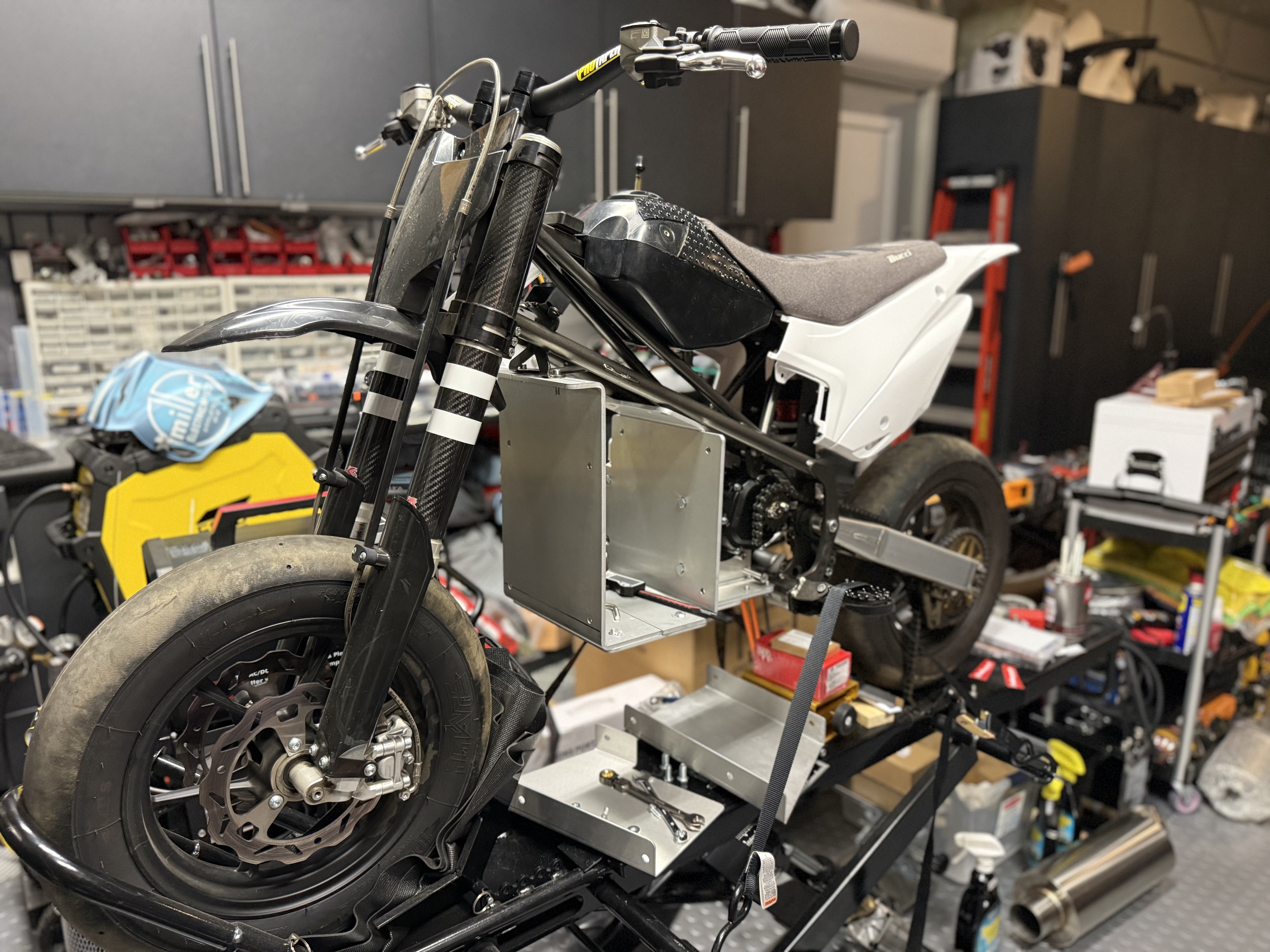

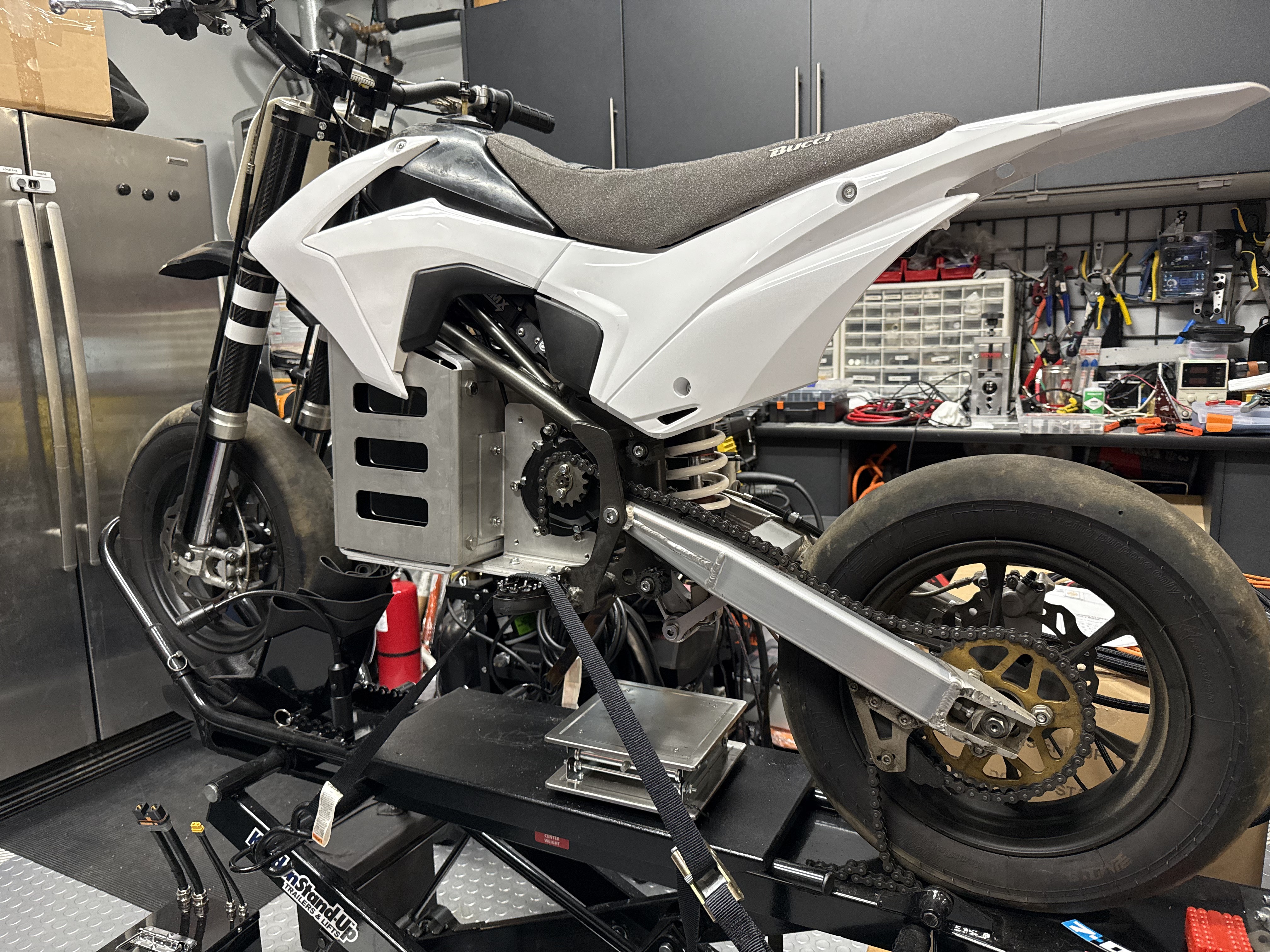

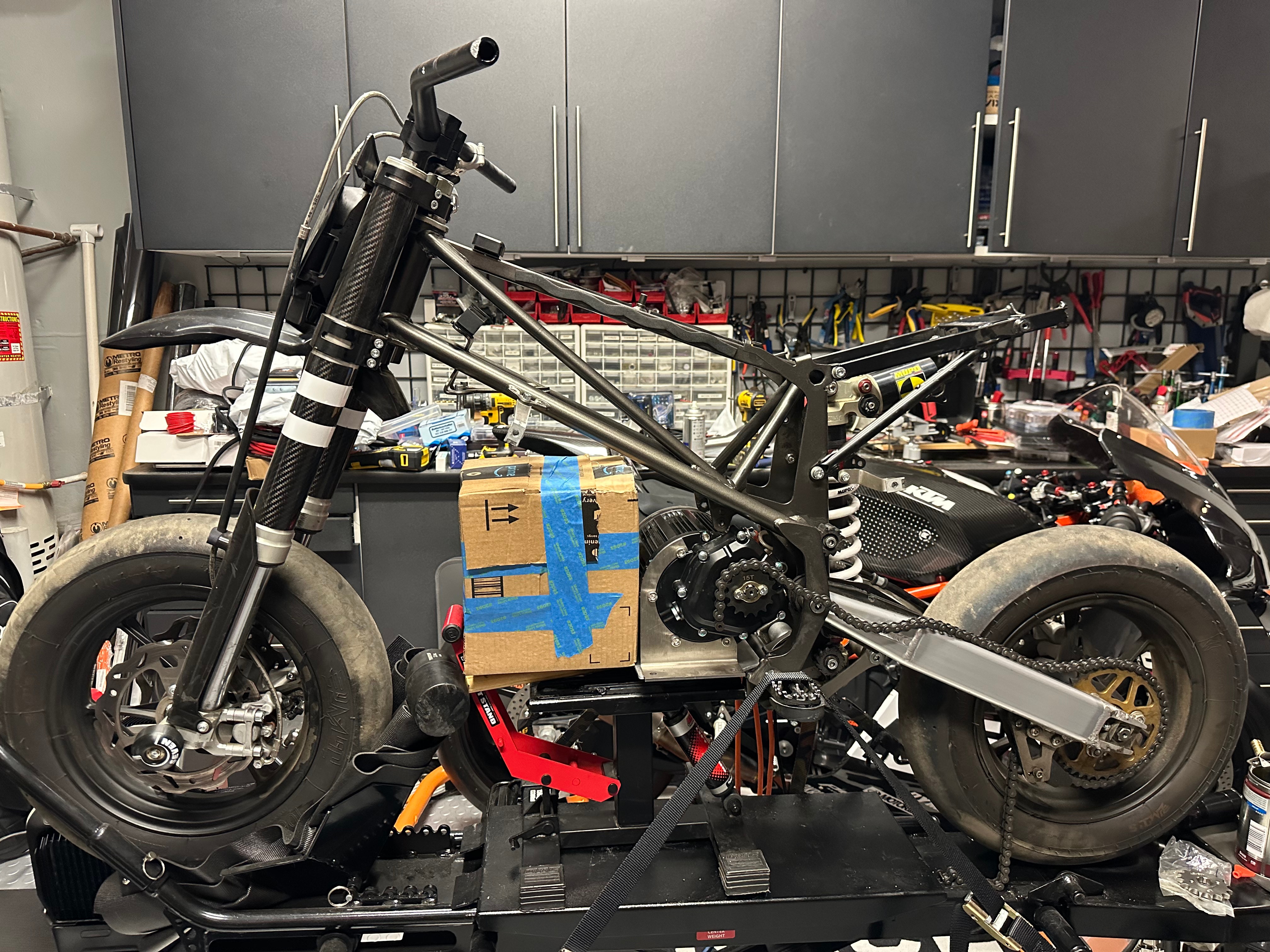

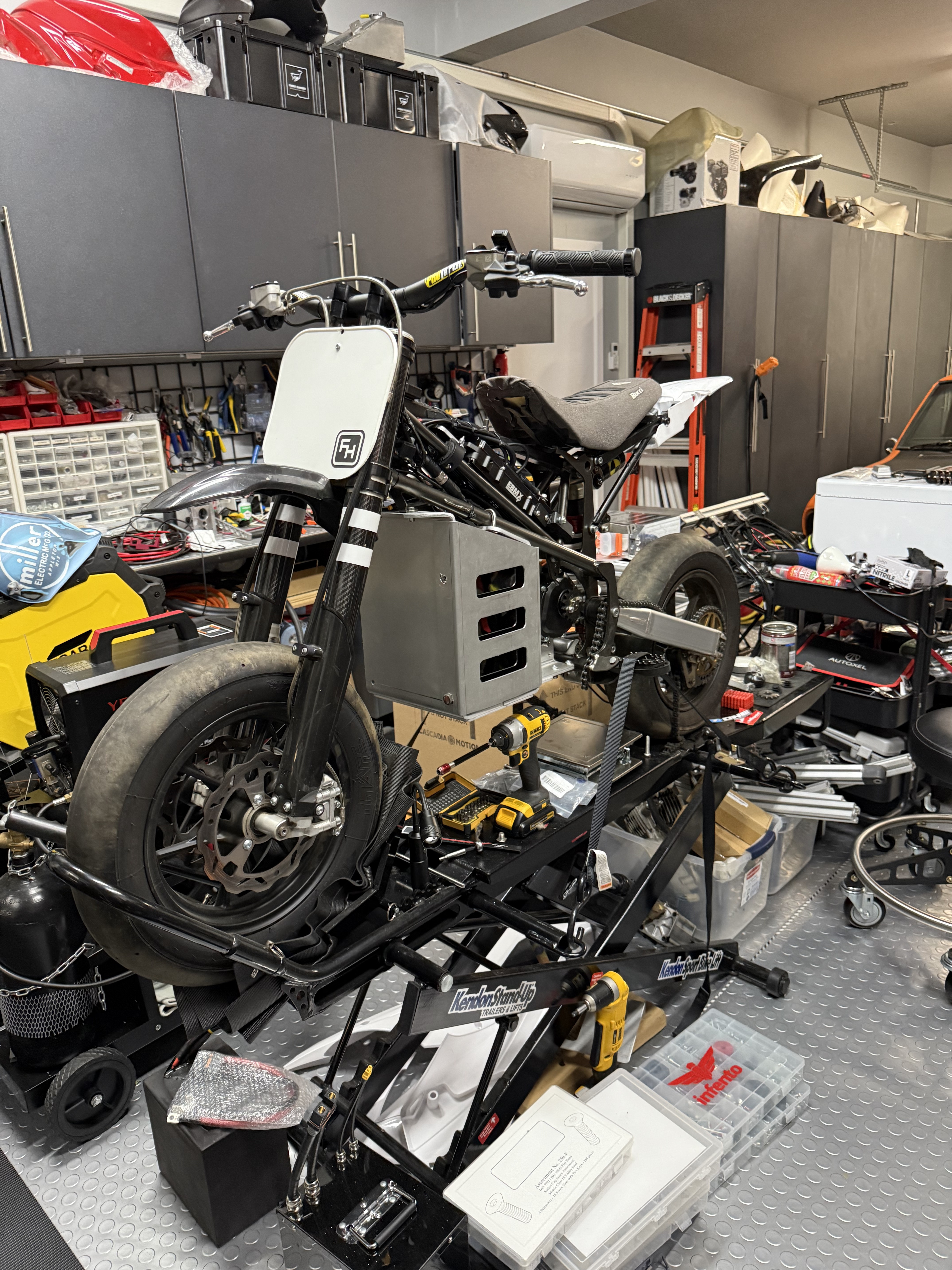

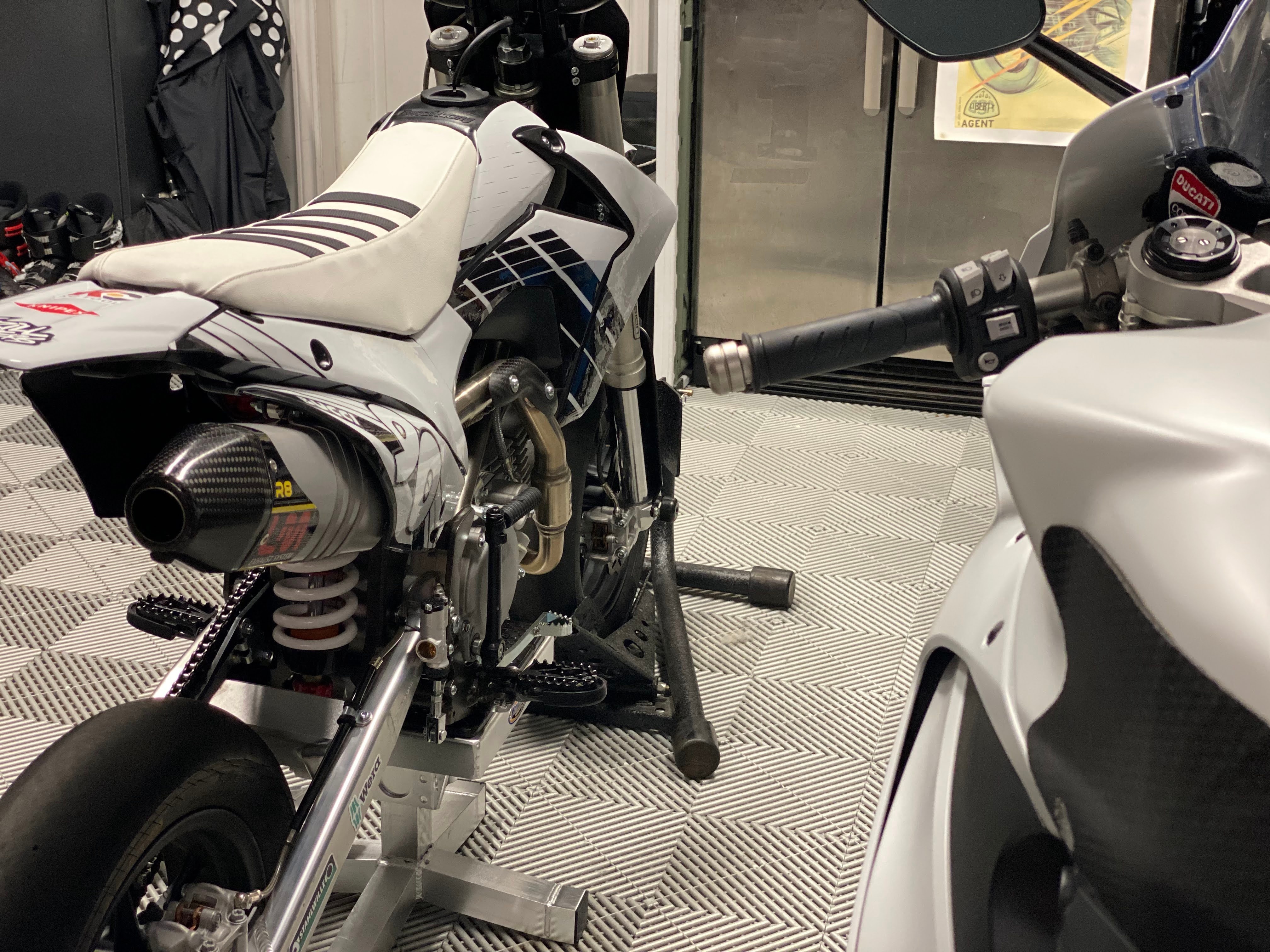

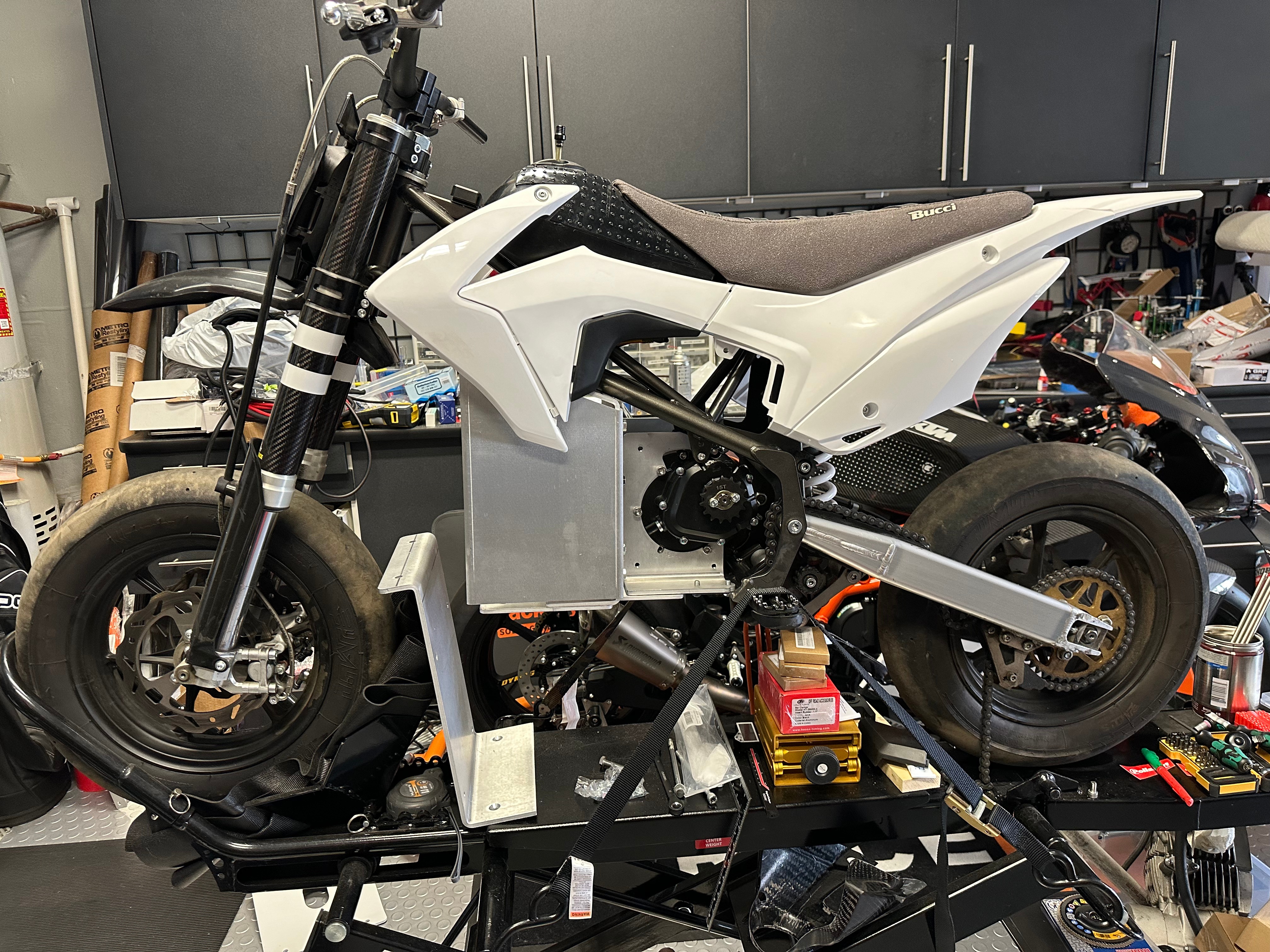

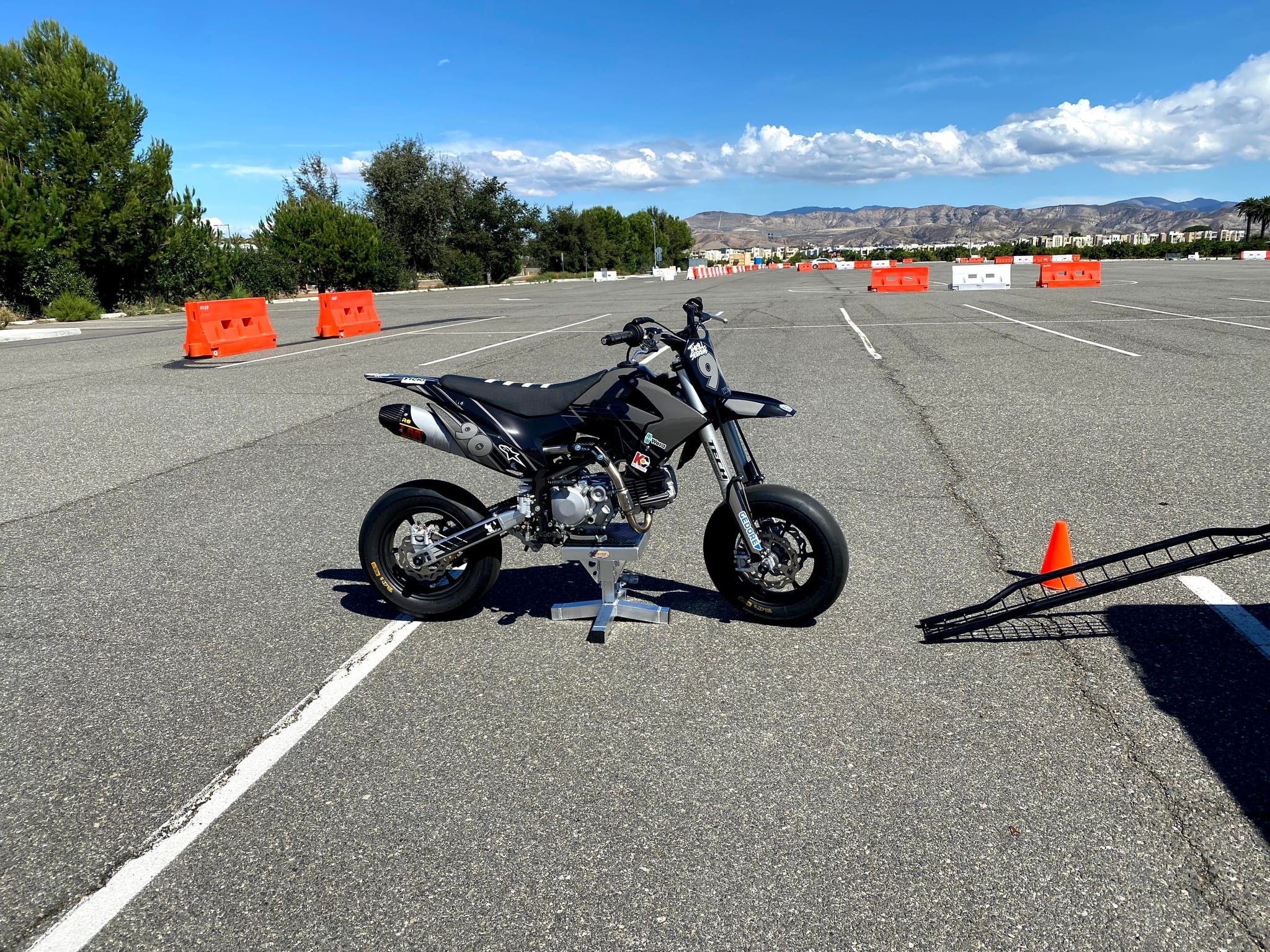

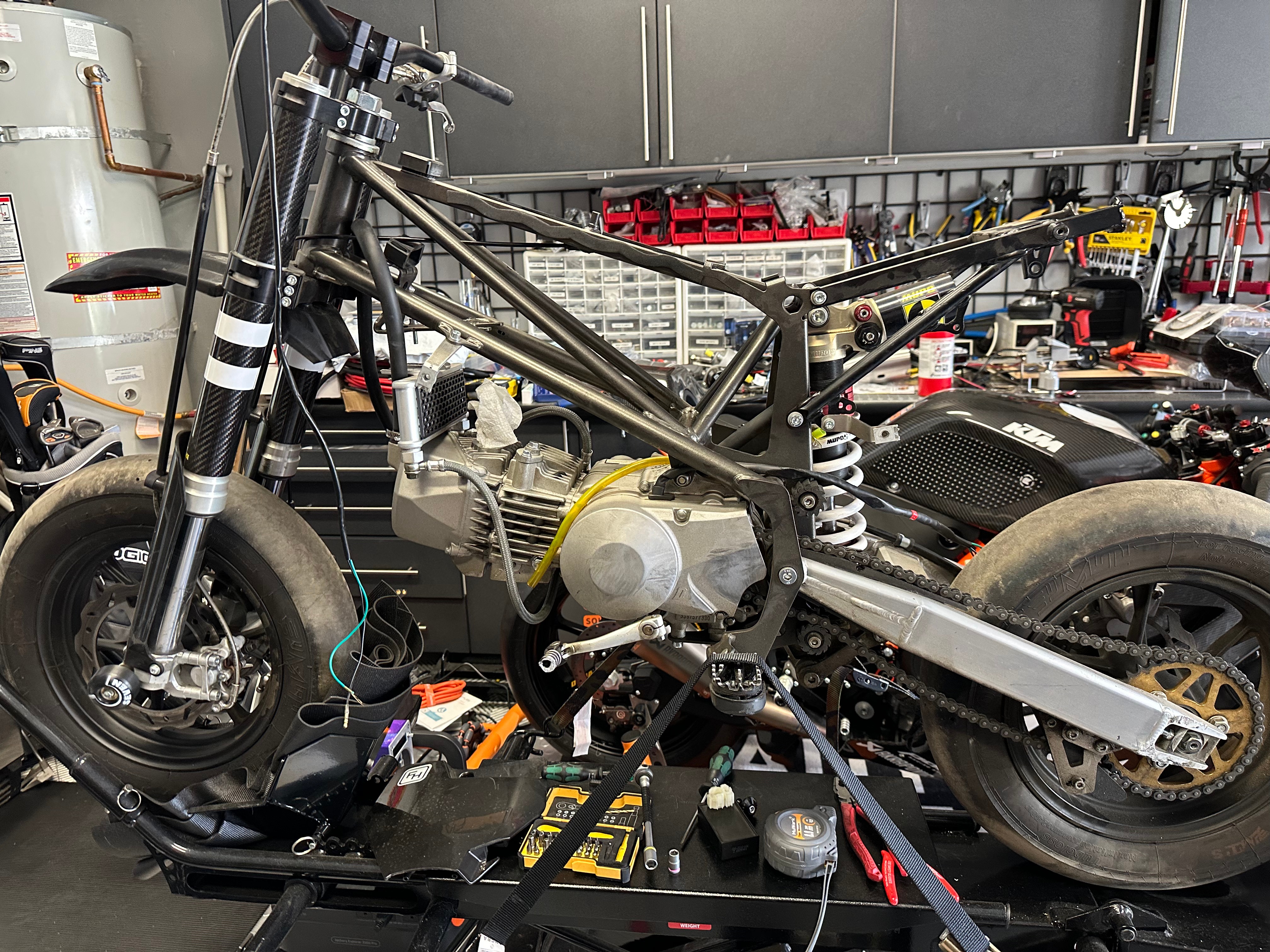

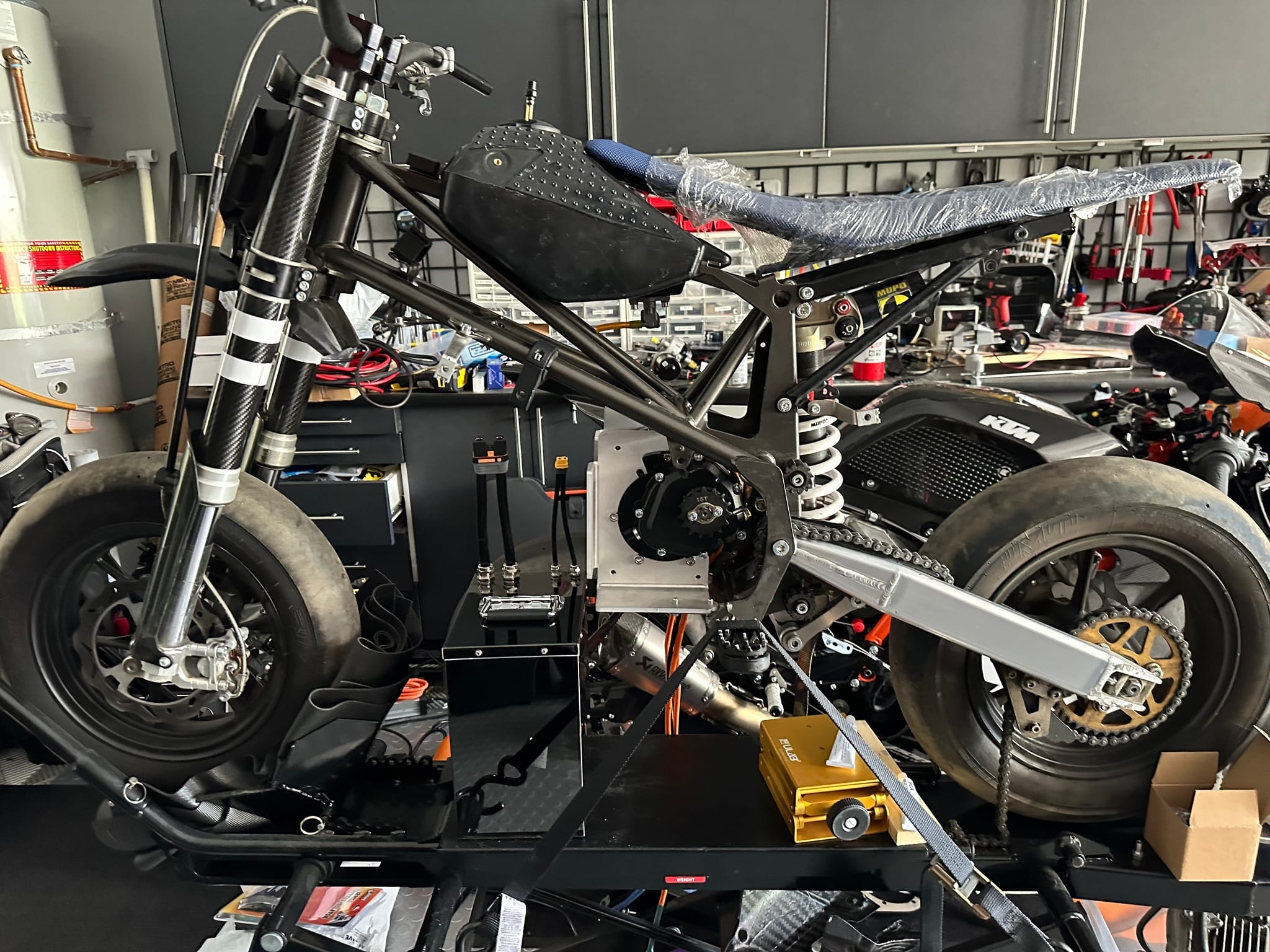

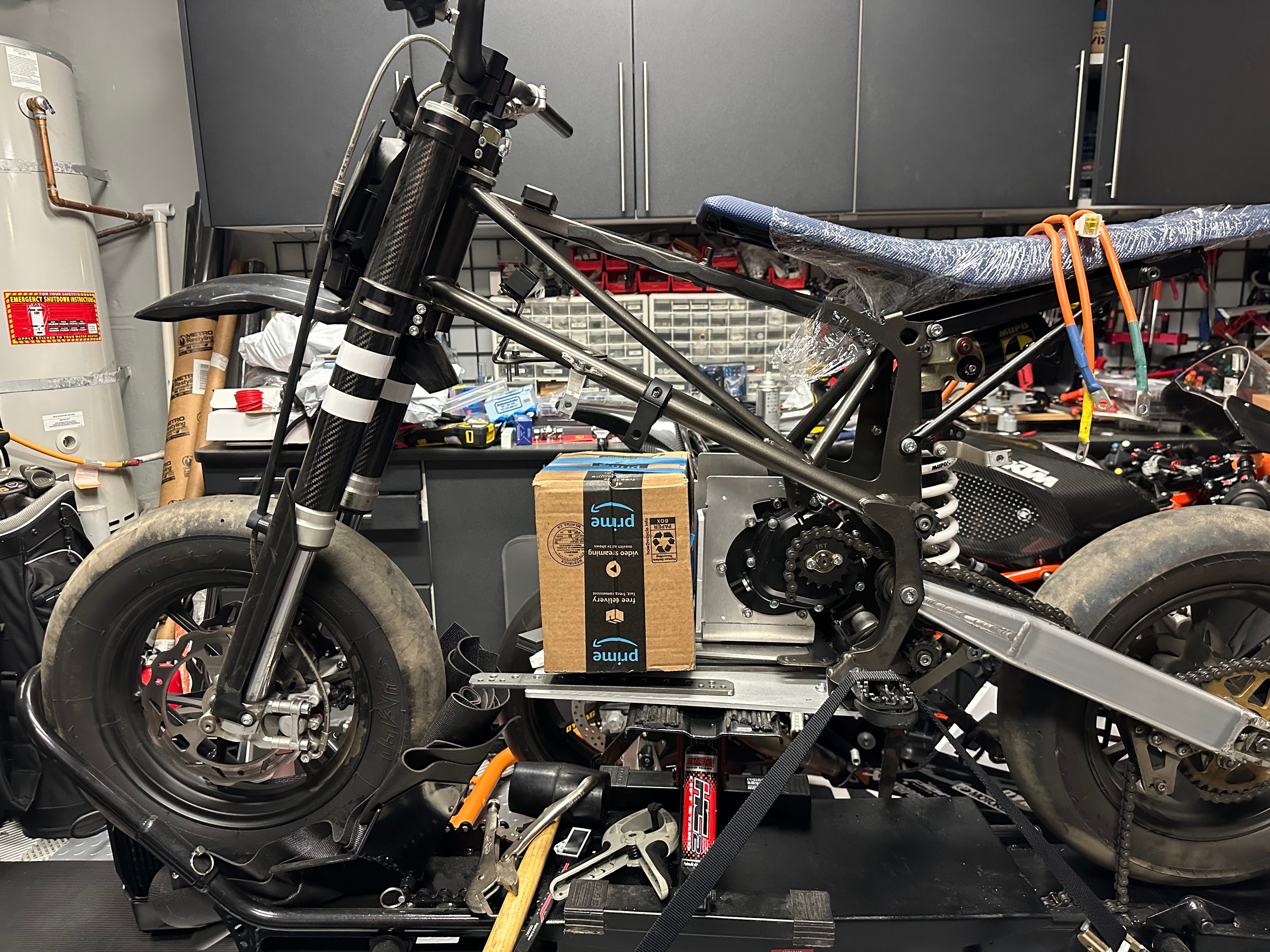

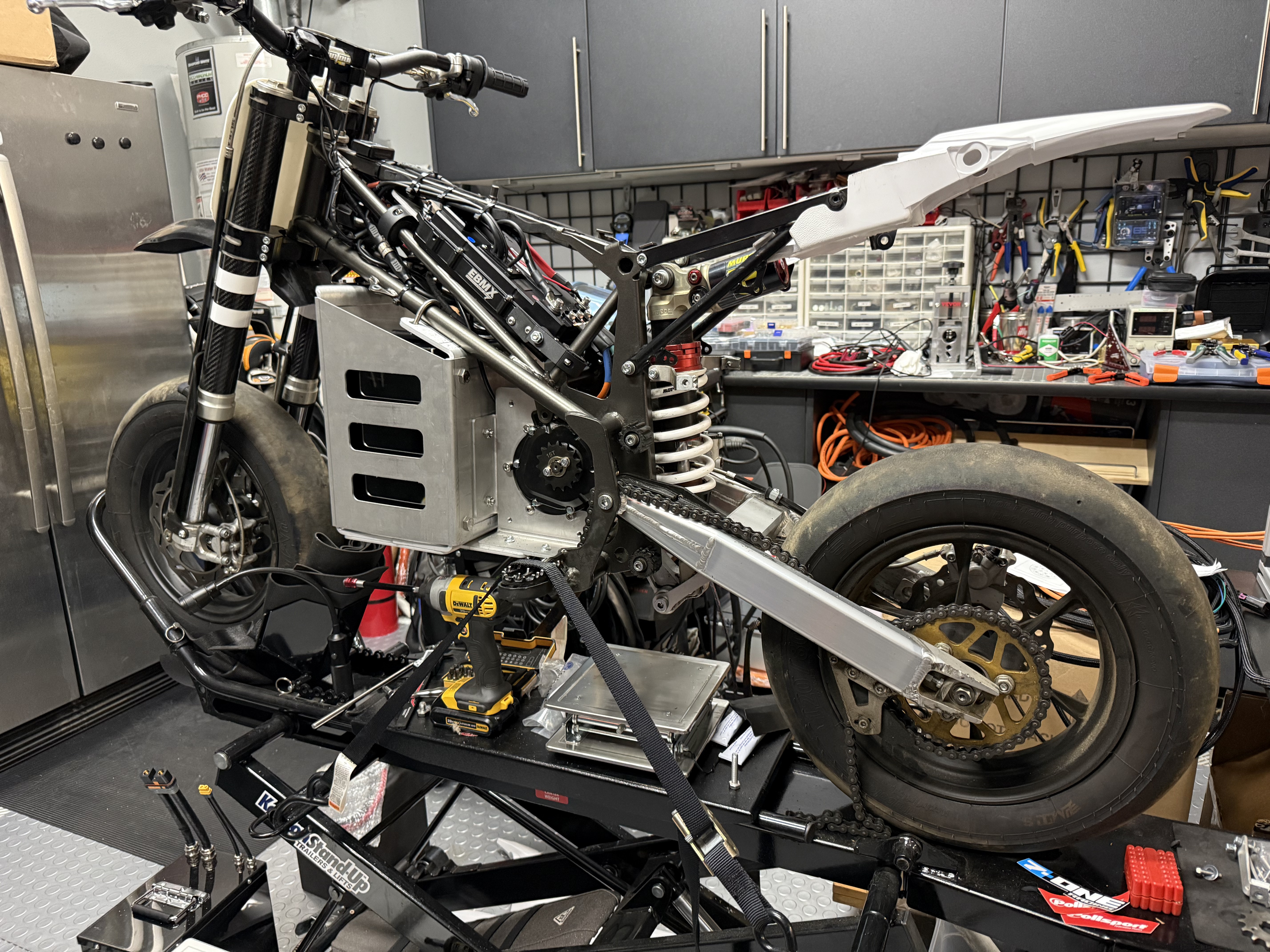

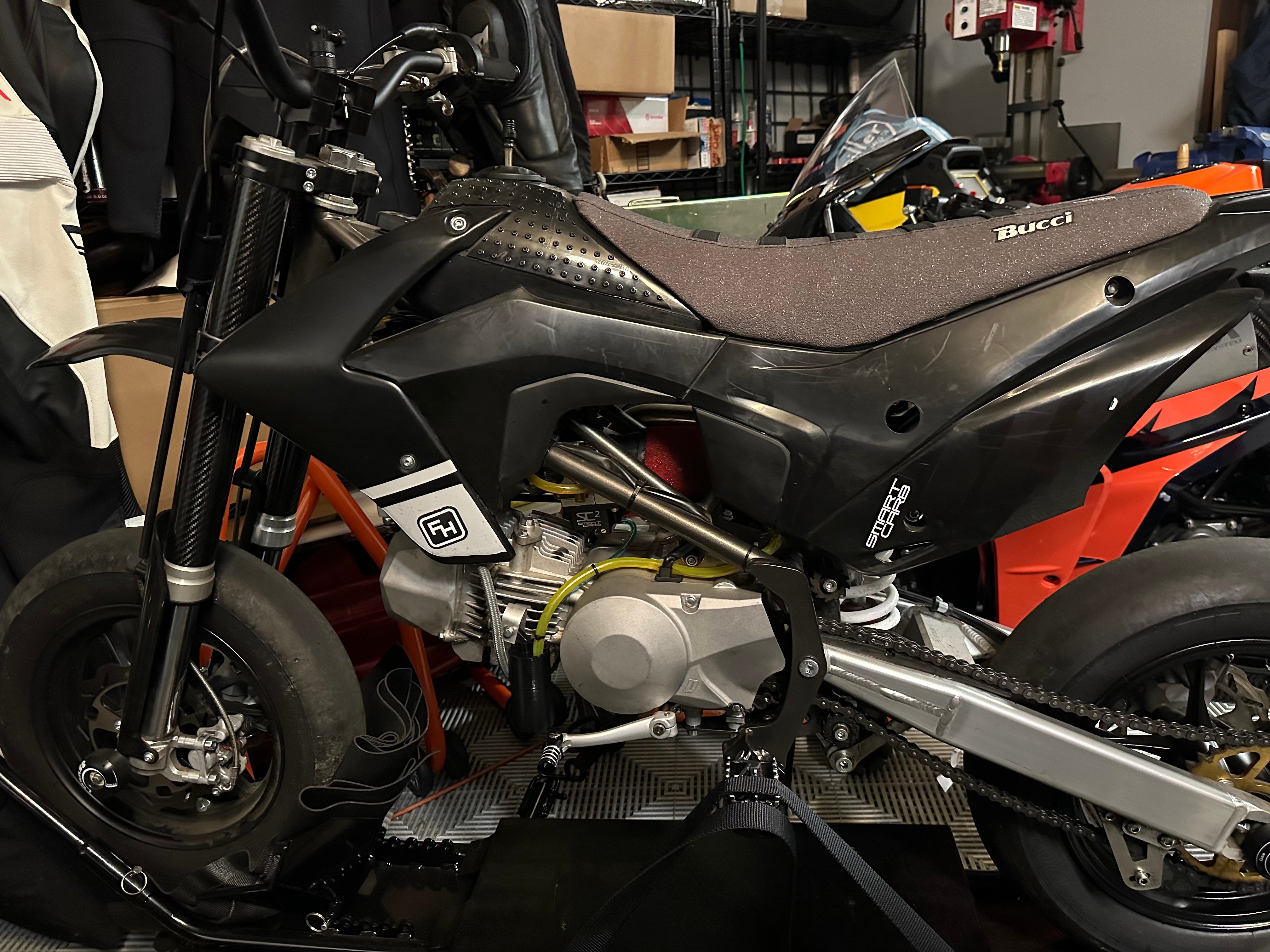

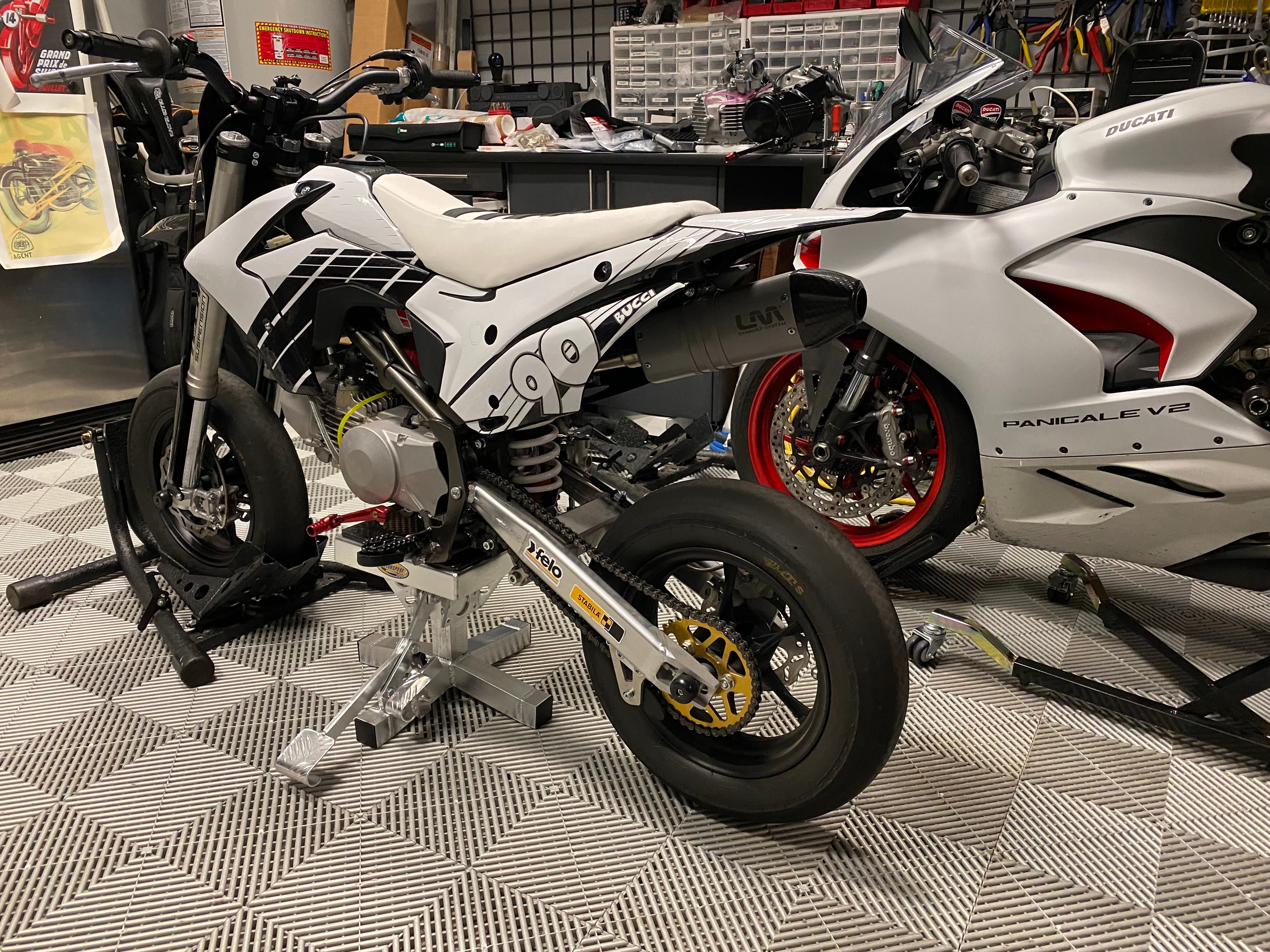

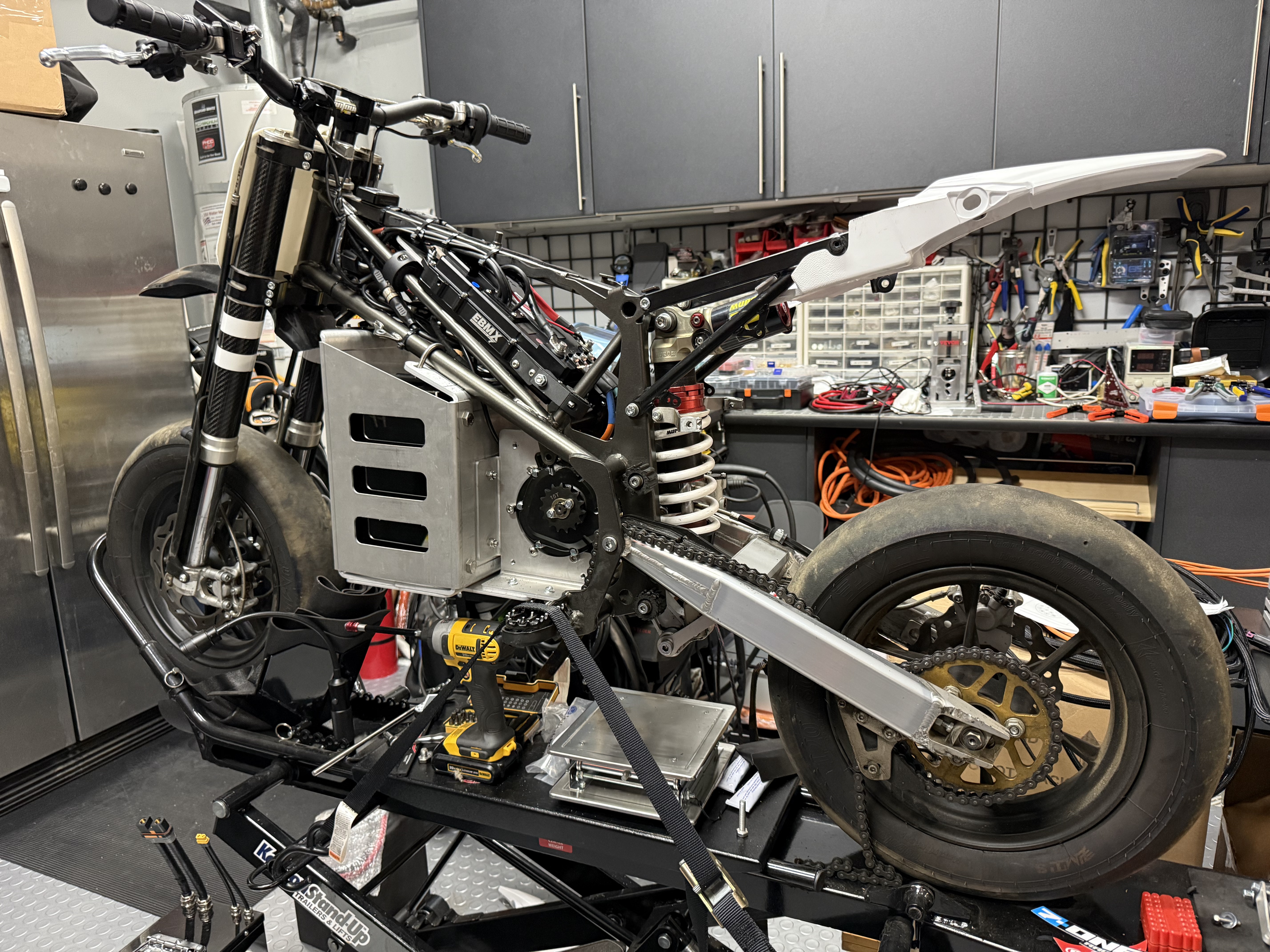

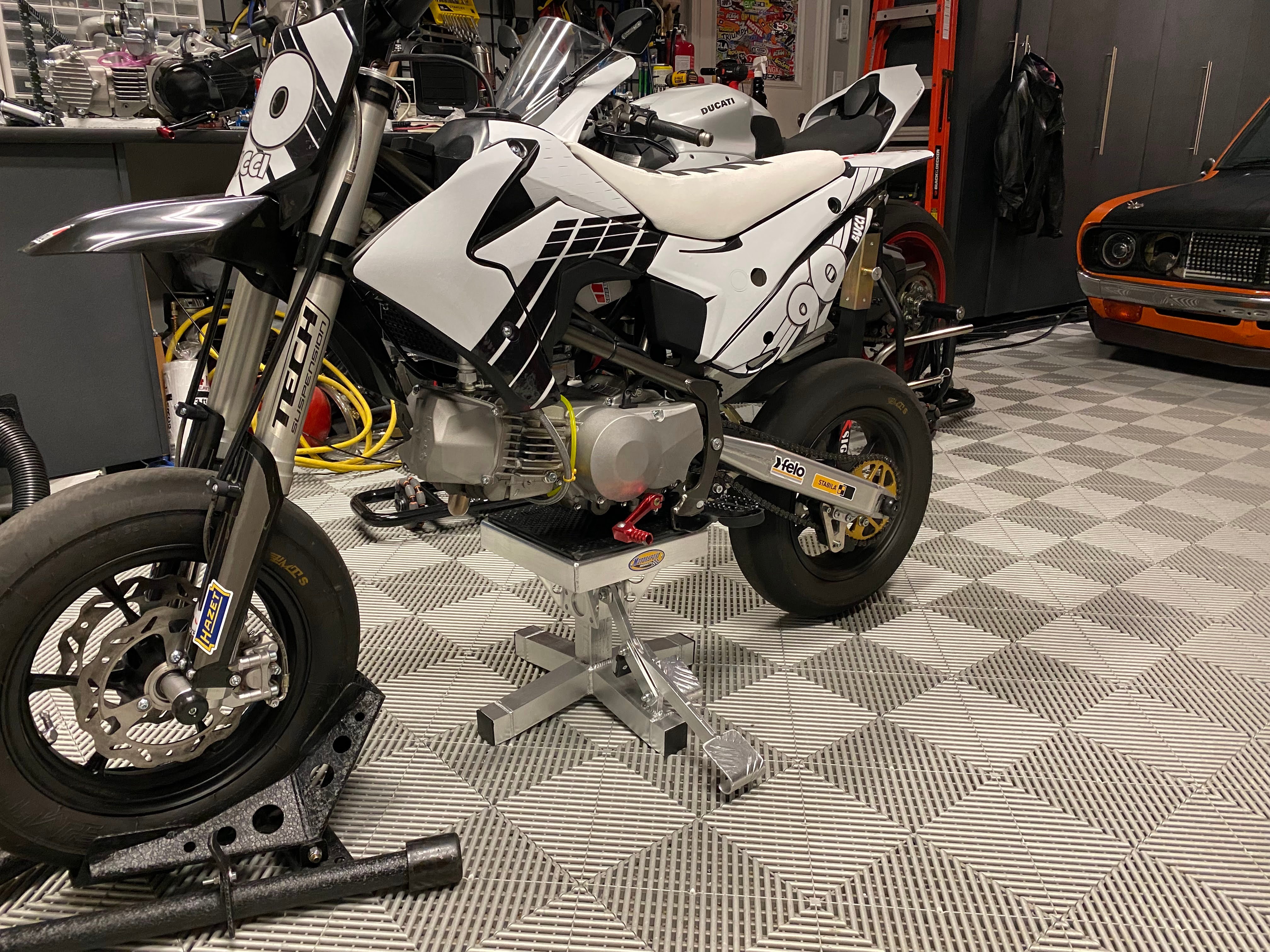

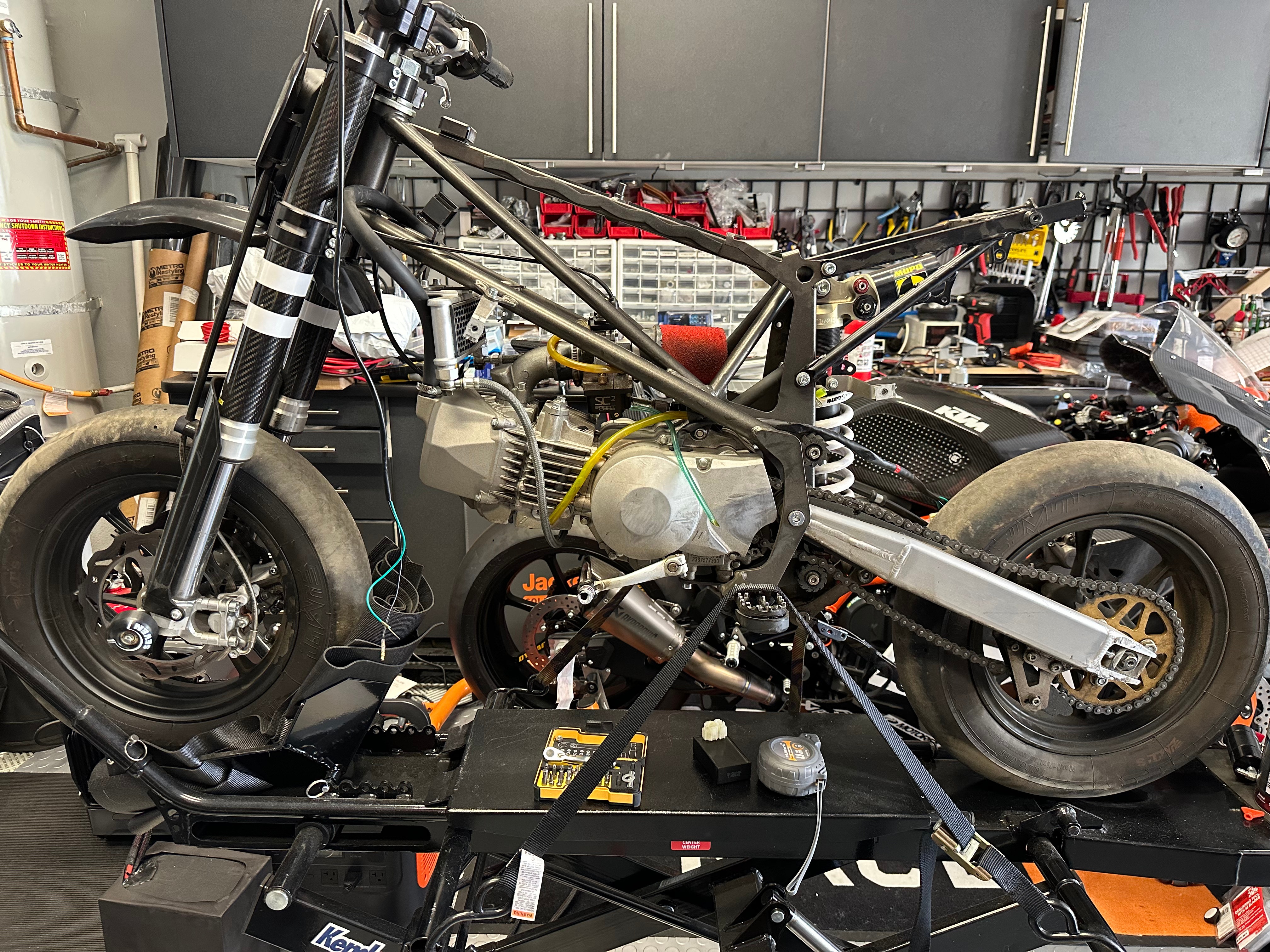

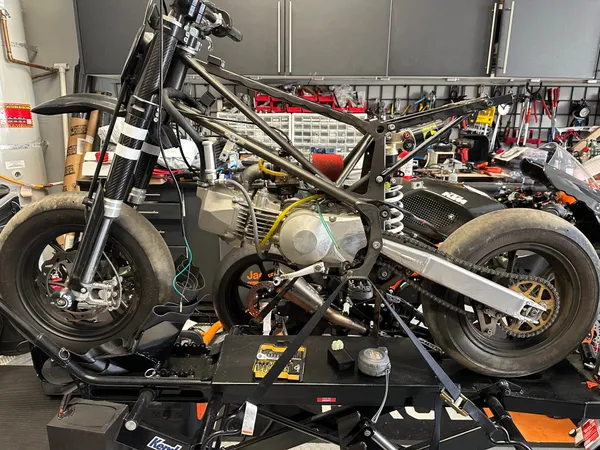

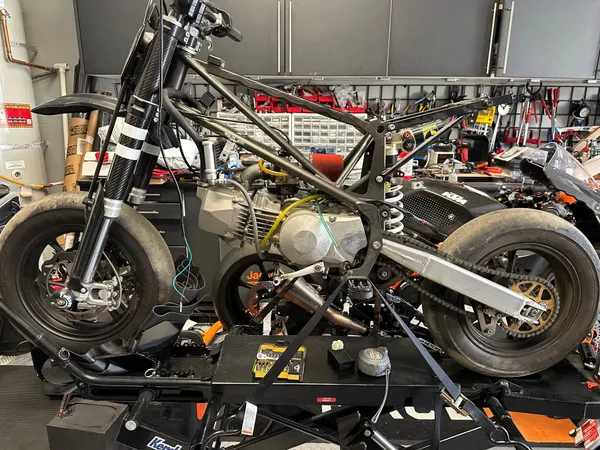

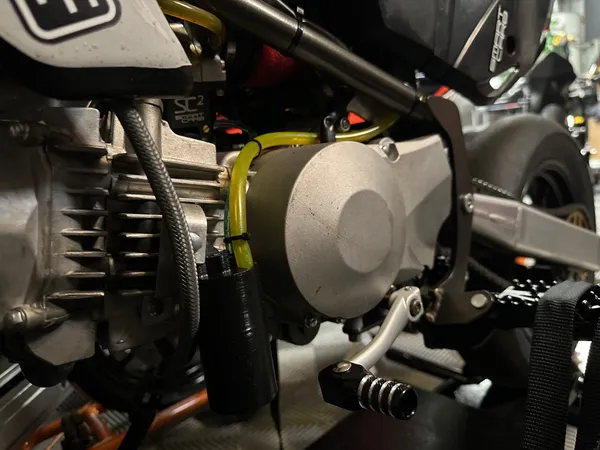

This project is a conversion of the 2021 Bucci F20SM Mini Motard. In place of the Daytona Anima 190 motor, there is now a QS 138 90H V3 motor. It is controlled by an EBMX X-9000 controller. The battery is custom made from Amorge and runs a 90V configuration. All of the panels are laser cut and bent from SendCutSend in 6061 aluminum. The conversion is completely reversible.

CAD Files (DXF Downloads)

• Base Plate
• Battery Box Front
• Battery Box A
• Battery Box B
• Battery Cover Left
• Battery Cover Right
• Battery Rear Update
• Box Top
• Engine Mount — Brake Side
• Engine Mount — Chain Side
